KA151
29.10.2014 11:07

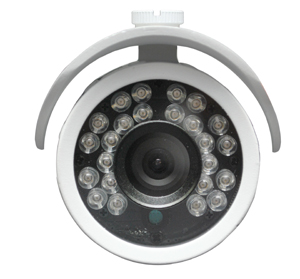

cámara análogo tipo bala HD-SDI , para uso exterior / interior, resistente al polvo y la humedad(IP66), infrarrojo, sensor 1/2.7” CMOS progresivo, lente fijo 4.3 mm, resolución 1080 pixeles, iluminación min 0.1 lux, 24 IR leds, rango iluminación 15metros, auto iris, 12V DC. (adaptador AC no incluido).
|
Product Specification |
|
| MODEL | KA151 |
| PICK UP DEVICE | 1/2.7" progressive CMOS |
| SDI OUTPUT | HD-SDI ( SMPTE292M ) |
| DIGITAL RESOLUTION | 1920x1080p ( 1080p/25,30fps ) |
| HORIZONTAL TVL | 1000TVL |
| VERTICAL TVL | 1000TVL |
| LENS | 4.3 mm fixed lens |
| VIEW ANGLE ( HORIZONTAL ) | 60° |
| AUTO IRIS LENS | Yes |
| AUTO IR CUT FILTER | Yes |
| IR LED / EFFECTIVE RANGE | 24 infrared LEDs / ~15m |
| MIN. ILLUMINATION | 0.1 Lux ( F1.2, 30 IRE, AGC Max ) |
| ELECTRONIC SHUTTER | 1/60 (50) ~ 1/30000 sec |
| ELECTRONIC SHUTTER CONTROL | Built-in |
| BACK LIGHT COMPENSATION | Yes |
| S / N RATIO | More than 40dB ( AGC OFF ) |
| WHITE BALANCE | Auto |
| AUTO GAIN CONTROL | Yes |
| NOISE REDUCTION | Auto |
| POWER SOURCE | 12V DC / 170mA ( IR OFF ) 320mA ( IR ON ) |
| OPERATING TEMPERATURE | -10˚C ~ 50˚C |
| HUMIDITY | 0% - 90% ( No condensation ) |
| WEATHER PROOF | IP66 |
| NET WEIGHT ( g ) | 290 |
| DIMENSION | 55mm (W) x 65mm (H) x 105mm (D) |
